BMW OBD2 20-Pin to 16-Pin Diagnostic Connector Adapter Cable

This adapter cable provides a direct solution for mechanics, technicians, and DIY enthusiasts needing to connect modern OBD2 diagnostic equipment to older BMW vehicles. Many BMW models, particularly from earlier production years, feature a proprietary 20-pin diagnostic port located under the bonnet, rather than the standardised 16-pin OBD2 port found under the dashboard in most cars. This cable acts as a physical interface converter, enabling standard OBD2 scan tools, code readers, and diagnostic software to communicate with these BMW-specific systems. It is a single, dedicated cable designed for this specific conversion task, operating within standard automotive electrical parameters.

Features and Construction

This is a purpose-built adapter designed for a single, clear function: protocol conversion through physical connection. Its construction is focused on providing reliable electrical contact between two different diagnostic port standards.

Material and Build

The adapter is constructed from automotive-grade connector housings and pins, designed to withstand the environment of a vehicle engine bay. The internal wiring uses insulated cables capable of handling the 12V operating voltage specified for its use. The build is focused on creating a secure and stable connection path for diagnostic data signals between the vehicle's ECU and the external scan tool.

Size and Practical Fit

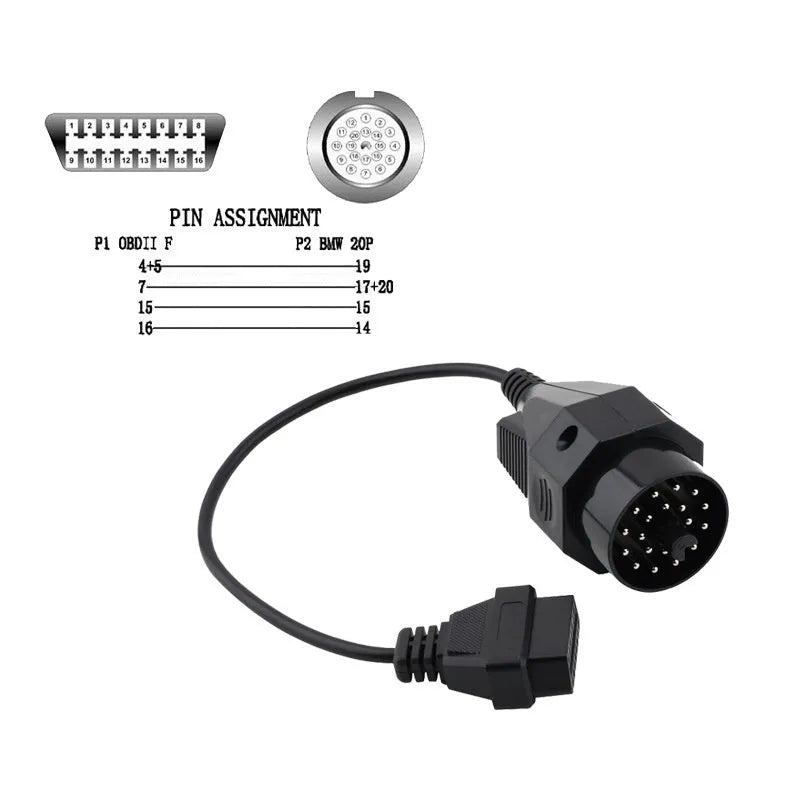

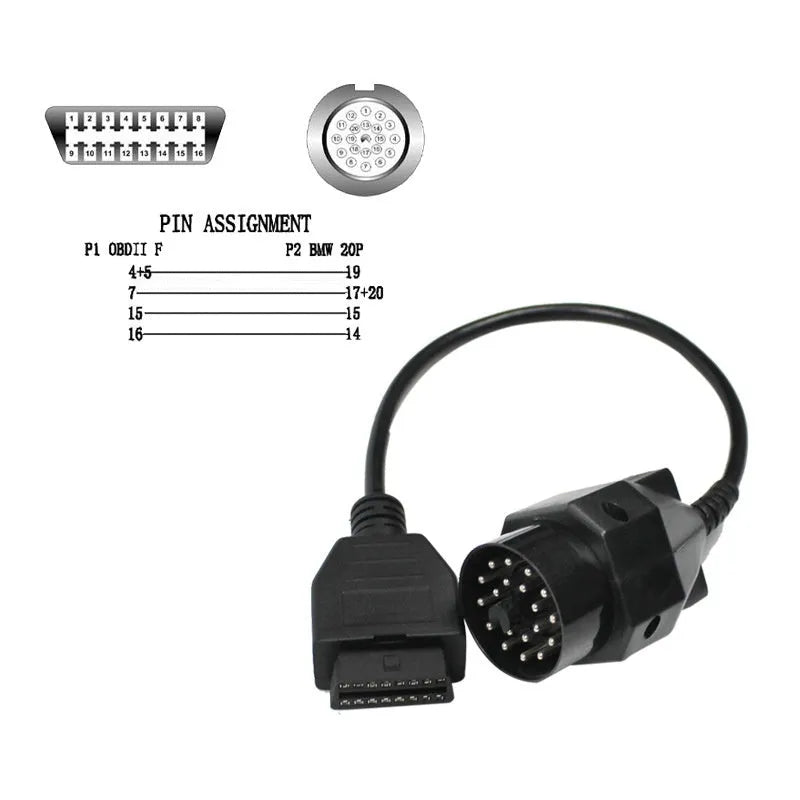

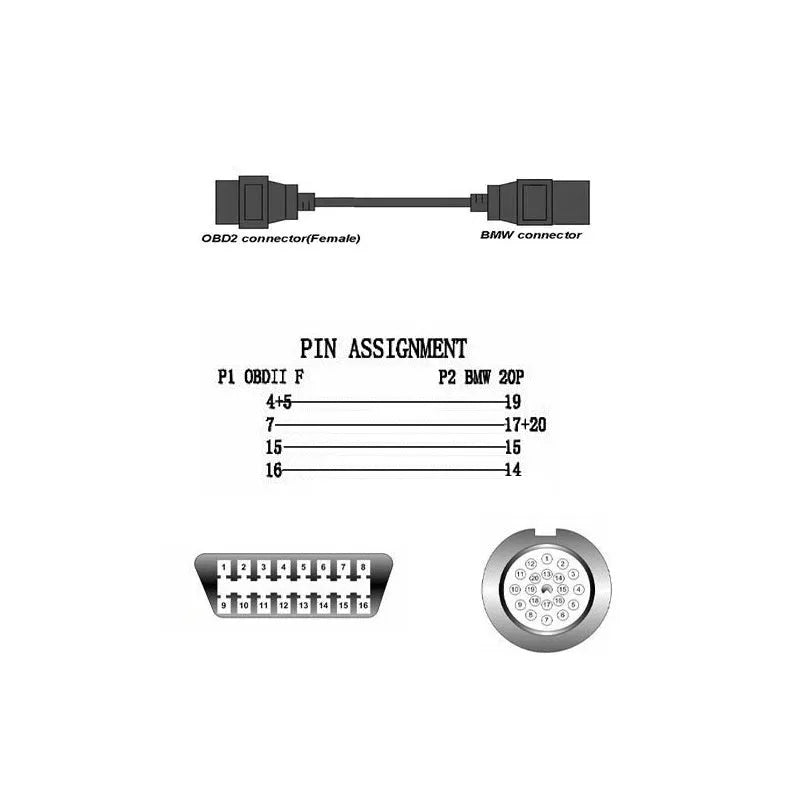

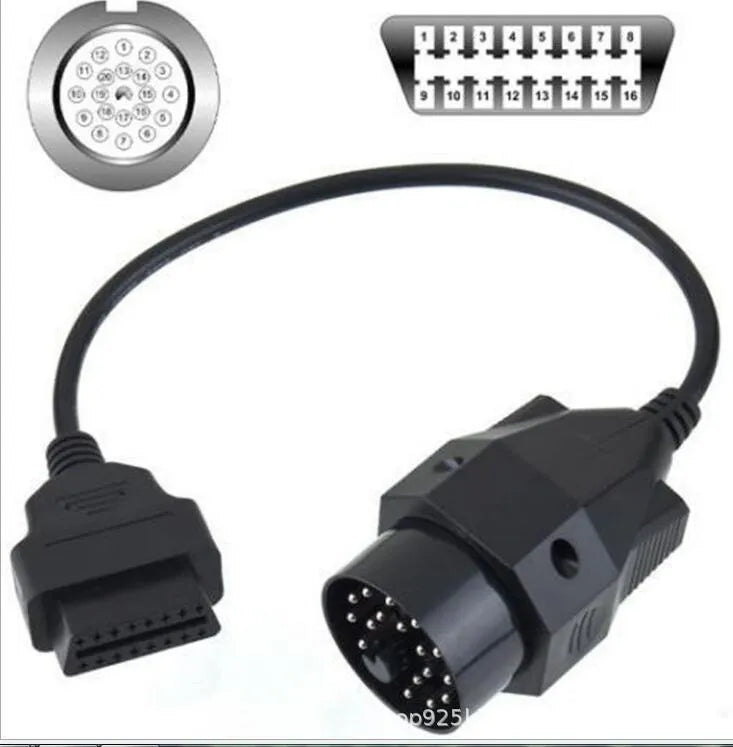

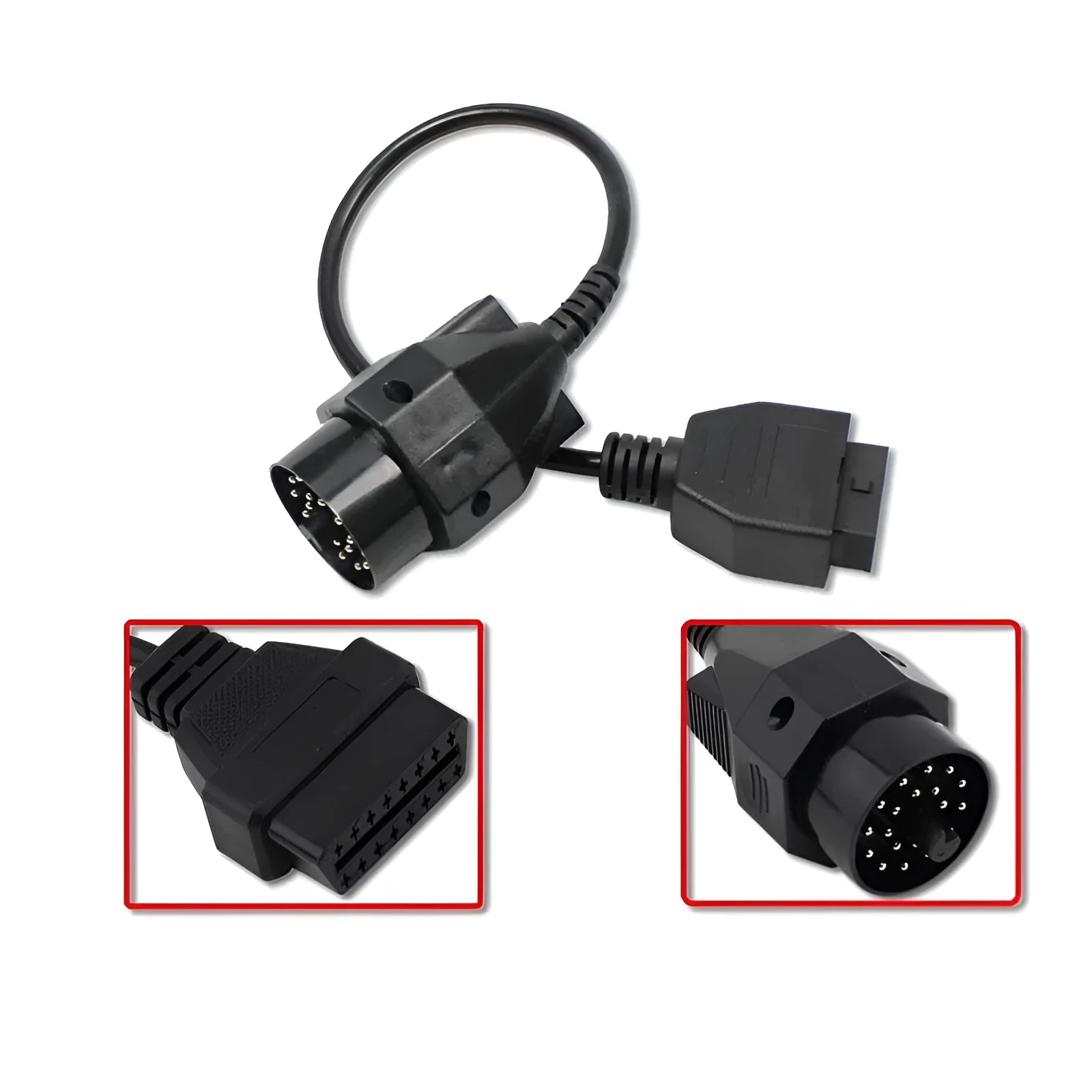

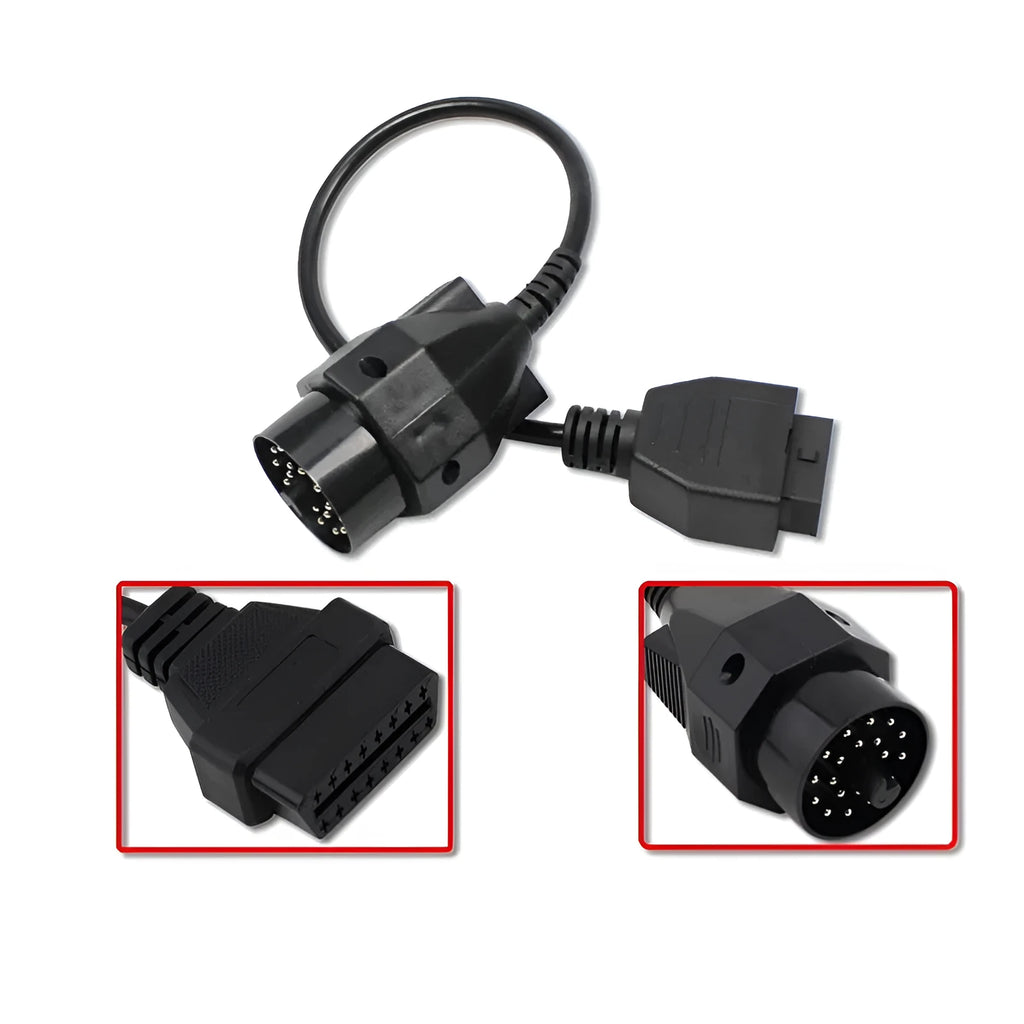

The cable is supplied as one complete unit. While the exact cable length is not specified, it is designed to provide enough slack for practical connection between the under-bonnet BMW port and a diagnostic tool held by the user. The connectors are keyed to ensure correct orientation and prevent incorrect insertion. The 20-pin male end matches the socket layout of designated BMW vehicles, and the 16-pin female end conforms to the standard OBD2 Type-2 connector shape.

Uses and Placement

This cable has a specialised application within automotive diagnostics, specifically for a defined range of vehicles. Its use is centred on enabling modern diagnostics on older technology.

Event or Professional Use

For professional garage mechanics and mobile technicians, this adapter is an essential tool for servicing a segment of the BMW fleet. It allows workshops to use their existing, often expensive, mainstream OBD2 diagnostic platforms (like Bosch, Snap-on, or Autel units) on applicable BMW models without needing a brand-specific interface. This saves on equipment costs and streamlines the workshop process by reducing the number of dedicated cables required.

Everyday Home Use

For the BMW owner and home mechanic, this cable enables the use of affordable consumer-grade OBD2 Bluetooth adapters and basic code readers. This opens up the possibility of reading engine fault codes, monitoring live data, and resetting service lights on eligible vehicles from the driver's seat using a smartphone app or a simple scanner, tasks that would otherwise require a specialist BMW-specific tool.

Benefits and Buying Value

The value of this product lies in its specific functionality and the access it grants to more affordable and widespread diagnostic technology.

Reuse and Low Maintenance

The cable is a durable, reusable tool. Unlike a software subscription or a single-use item, this physical adapter can be used repeatedly on any compatible BMW vehicle. It requires virtually no maintenance; simply store it with other automotive tools. Its passive design means there are no batteries, software updates, or internal components that can degrade over time with normal use.

Why Choose This Product

This product is chosen for its targeted compatibility. It is not a universal adapter but is built specifically for the BMW 20-pin to OBD2 conversion. This focused design reduces the risk of connection issues or communication errors that can occur with more generic, multi-brand adapters. It provides a straightforward, reliable link for its intended purpose, based on the confirmed specification for BMW vehicle lines using the 20-pin system.
