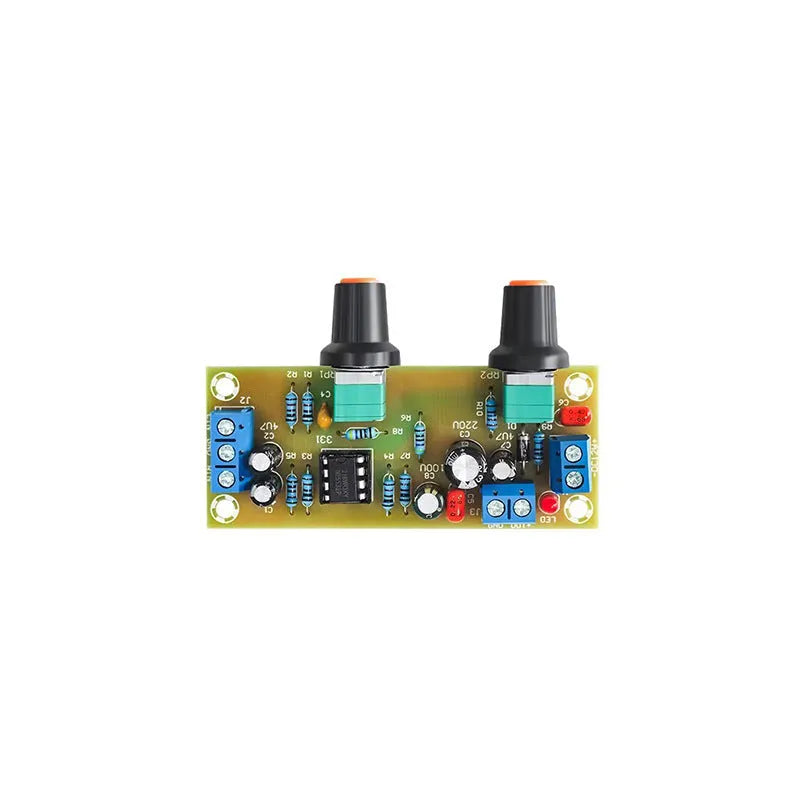

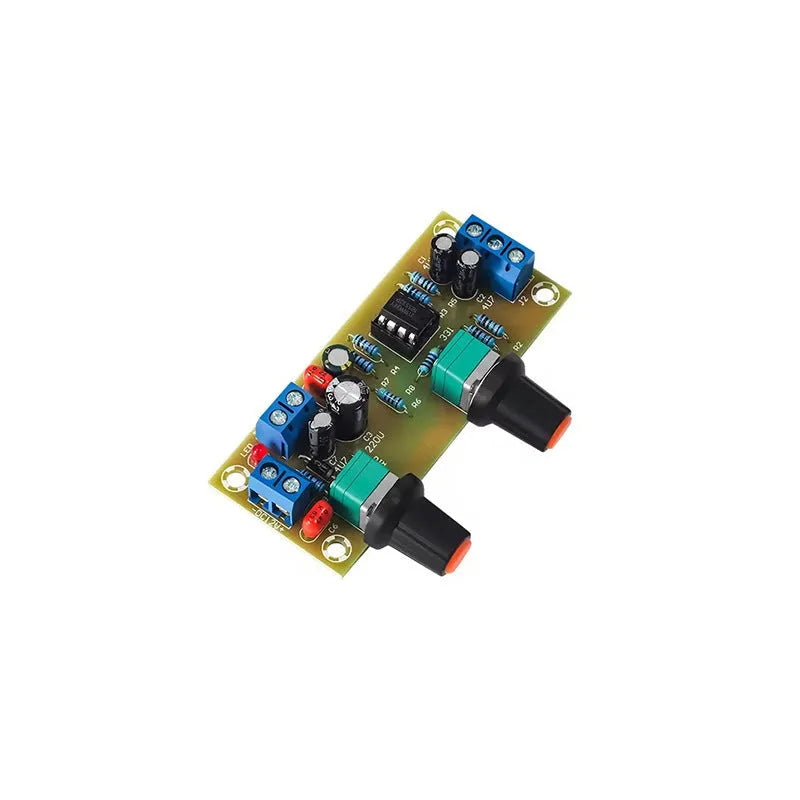

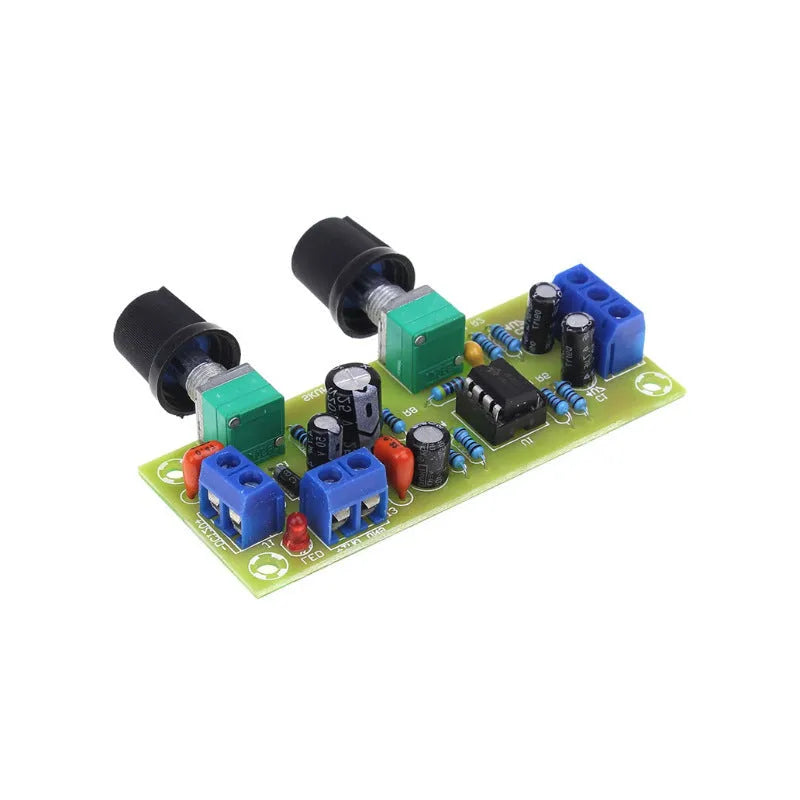

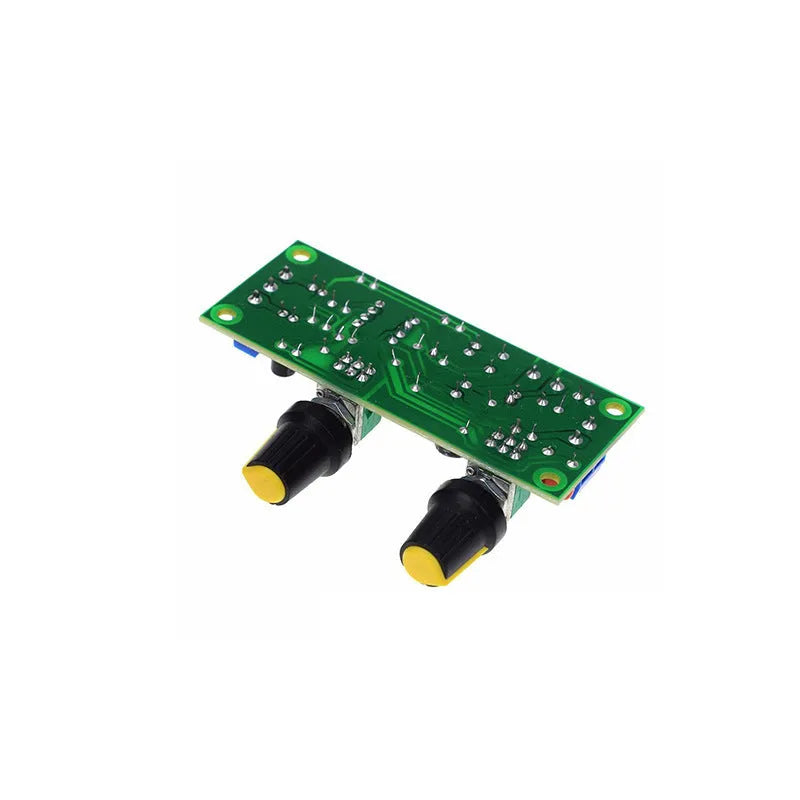

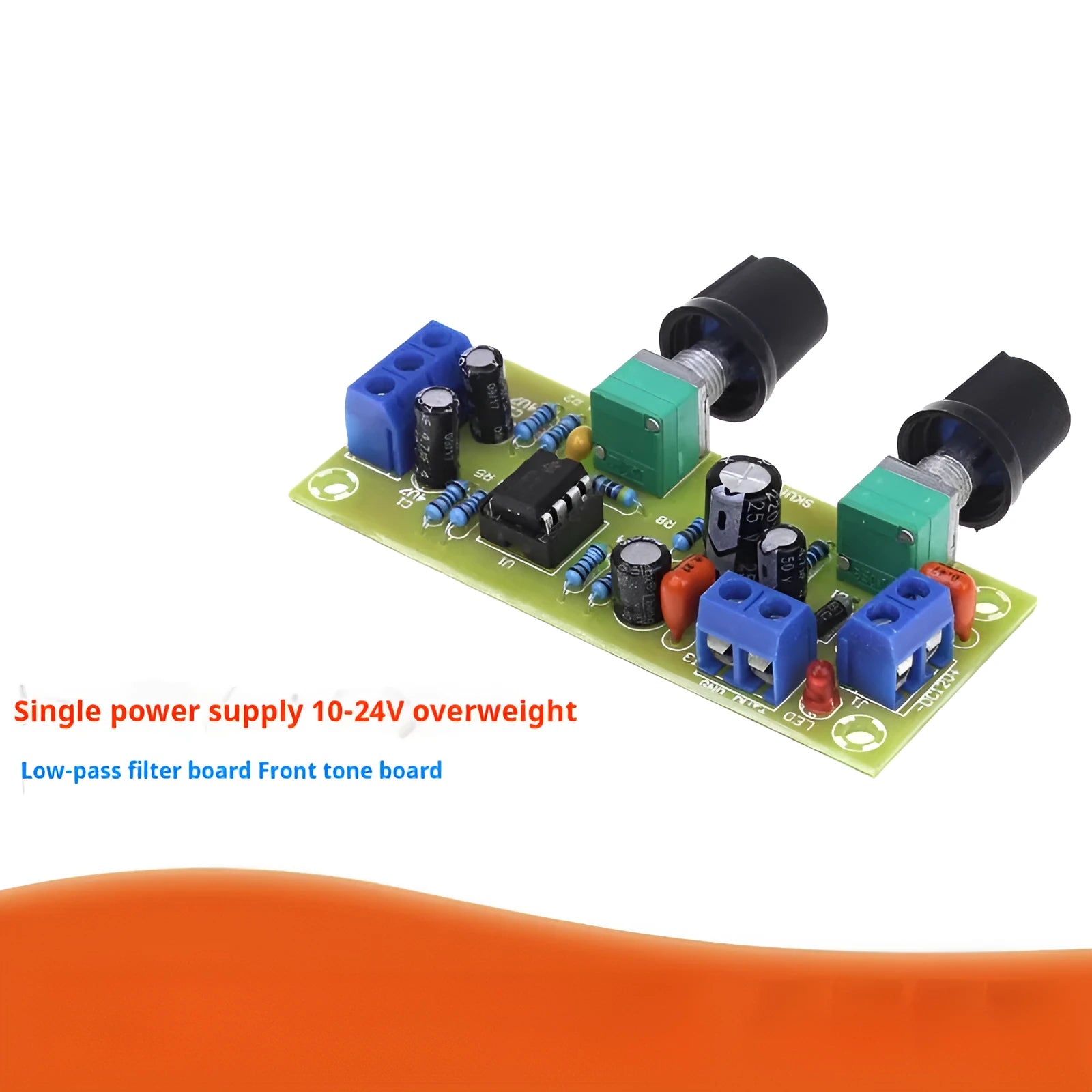

Single power supply 10-24V super dynamic bass boost front stage board with mono audio output
This front stage board offers bass boost functionality for audio systems requiring a compact, single power supply solution. Operating on 10-24V DC power, the board provides dynamic bass enhancement across a frequency range from 22Hz to 300Hz, making it suitable for various audio applications where space-efficient components are essential. The board accepts audio input through either mono or dual channel configurations and delivers mono output, providing flexibility in system design while maintaining straightforward integration.
Features and Construction
The board's construction focuses on practical functionality within a compact footprint, designed to enhance bass response while maintaining compatibility with standard power supplies and audio connections.
Material and Build
Constructed using super hardness FR-4 fibreglass board material, the PCB offers structural rigidity suitable for electronic applications. The 1.6mm thickness provides standard board durability while keeping the overall profile manageable for various installation scenarios. This material choice represents a practical approach to PCB construction without making unsupported claims about premium quality or extended lifespan.
Size and Practical Fit
Measuring 78mm by 32mm, the board's compact dimensions allow installation in space-constrained environments. The fixing holes feature centre spacing of 70mm by 24mm with 3.2mm diameters, accommodating standard mounting hardware. Potentiometer shaft centre spacing of 32.5mm ensures compatibility with common control components, while the 30g finished weight contributes to straightforward handling during installation.
Uses and Placement
This bass boost front stage board serves applications where enhanced low-frequency response benefits audio quality without requiring complex multi-power supply systems or extensive modification to existing setups.
Event or Professional Use
For professional audio applications, the board's 10-24V power range accommodates various power supply configurations commonly found in audio equipment racks and portable systems. The mono output design suits reinforcement applications where bass enhancement improves overall sound quality without complicating signal routing. The frequency range covering 22Hz to 300Hz focuses specifically on bass frequencies where enhancement typically provides most audible benefit in professional contexts.
Everyday Home Use
In home audio systems, the board's single power supply operation simplifies integration with existing equipment, avoiding the need for multiple power sources. The board's compact 78mm by 32mm dimensions allow discreet installation within audio cabinets or behind equipment racks. Support for both mono and dual channel audio input provides flexibility when connecting to various source equipment commonly found in home environments.
Benefits and Buying Value
The board offers practical advantages through straightforward functionality, standard construction, and compatibility with common audio system requirements.
Reuse and Low Maintenance
The FR-4 fibreglass material represents standard PCB construction that balances performance with practical considerations for typical electronic applications. Without making unsupported claims about extended lifespan, the material provides adequate durability for normal operational environments. The board's design focuses on core functionality rather than specialist features that might require additional maintenance or specific environmental controls.
Why Choose This Product
This bass boost front stage board provides a specific solution for audio systems requiring enhanced low-frequency response within a compact, single power supply format. The board's 10-24V DC operation range accommodates various power configurations, while the frequency range from 22Hz to 300Hz targets precisely the bass frequencies where enhancement typically proves most effective. The practical dimensions and standard mounting options facilitate straightforward integration into existing audio setups without requiring extensive modification or specialist installation.
